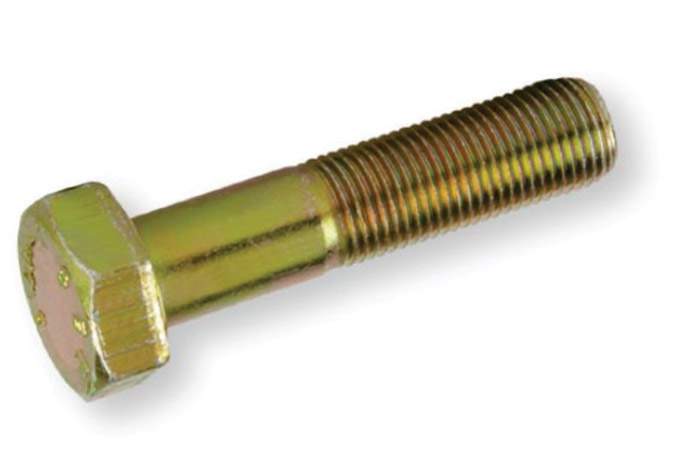

| Specification | |
| Size | METRIC SERIES: M12, M14,M16,M18, M20,M22,M24, M27,M30,M33 M36, M39, M42, M45, M48, M52, M56, M64, M72 INCH SERIES: 1/4”, 5/16”,3/8”7/16”, 1/2”, 9/16” 5/8”, 3/4”, 7/8”,1”,1.1/8”, 1.1/4”,1.3/8”, 1.1/2”, 1.5/8”,1.3/4”, 1.7/8”, 2”, 2.1/4”, 2.1/2” |
| Grade | "BS 1768 GR. S,VBS 1083 GR. A,B,TGR. B8,B8MGR. 660 (ENCONEL STEEL)GR.4.6, 5.6, 8.8, 10.9, 12.9GR.4.6, 5.6, 8.8, 10.9, 12.9Gr.8.8 , 10.9GR. B8,B8M” |
| Dimension | "BS 1768BS 1083ASME B18.2.3.3MASME B18.2.2IS 1364 Part 1IS 1363 Part 1DIN 931ASME B18.2.3.3MASME B18.2.3.3M" |
| Chemical & Mechanical | "BS 1768 BS 1083 ASTM A193 ASTM A453 IS 1367 PART 3 IS 1367 PART 3 ISO 898-PART 1 ASTM A193 ASTM A453" |
| Finish | "HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN: 1461, ASTM A153 ASTM A123BLACK PHOSPHATE: IS 1367 PT 12ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573" |

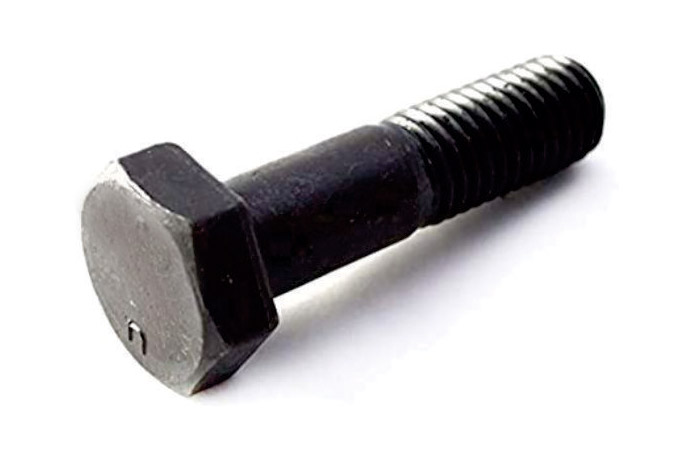

| Specification | |
| Size | METRIC SERIES: M16, M18, M20, M22, M24, M27, M30, M33 M36 INCH SERIES: 1/2”,5/8”, 3/4”, 7/8”, 1”, 1.1/8”, 1.1/4”, 1.3/8”, 1.1/2” |
| Grade | "GR.8S, 10SASTM A490 TYPE 1ASTM F3125-TYPE 1ASTM A307 GR.A & BGR.B7GR.L7,L7MGR. B8,B8M" |
| Dimension | "IS 3757ASME B18.2.6ASME B18.2.6MASME B18.2.3.3M” |
| Chemical & Mechanical | "IS 1367 PART3 ASTM A490 ASTM F3125 ASTM A193 ASTM A320 ASTM A193 ASTM A453" |
| Finish | "HOT DIP GALVANISED : IS 1367 PT 13 IS: 4759 BS EN: 1461, ASTM A153 ASTM A123BLACK PHOSPHATE: IS 1367 PT 12ELECTRO GALVANISED : IS: 1367 PT 11 , IS: 1573” |
