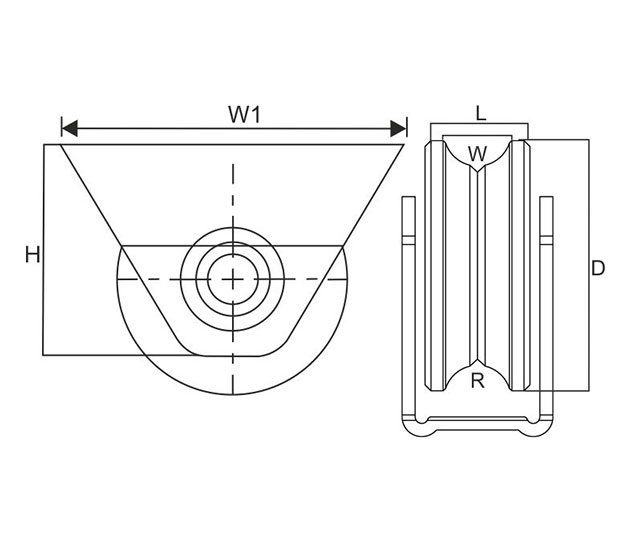

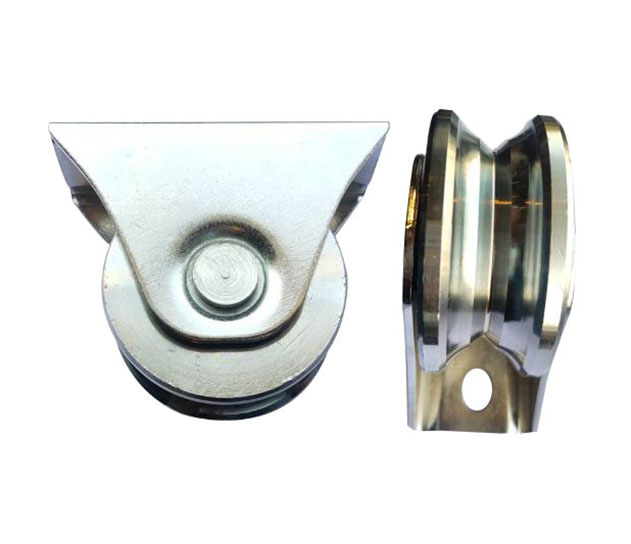

Type: FAS-A9 Series, Track Wheel with Heavy Bracket Combo (U+V), U & V Type Groove
| Code |
D(mm) |
L(mm) |
W(mm) |
R(mm) |
W1(mm) |
H(mm) |
| FAS-A91 |
50 |
22 |
16 |
8 |
75 |
55 |
| FAS-A92 |
60 |
22 |
16 |
8 |
75 |
55 |
| FAS-A93 |
75 |
32 |
22 |
11 |
105 |
74 |
| FAS-A94 |
80 |
32 |
22 |
11 |
105 |
75 |
| FAS-A95 |
100 |
32 |
22 |
11 |
105 |
85 |

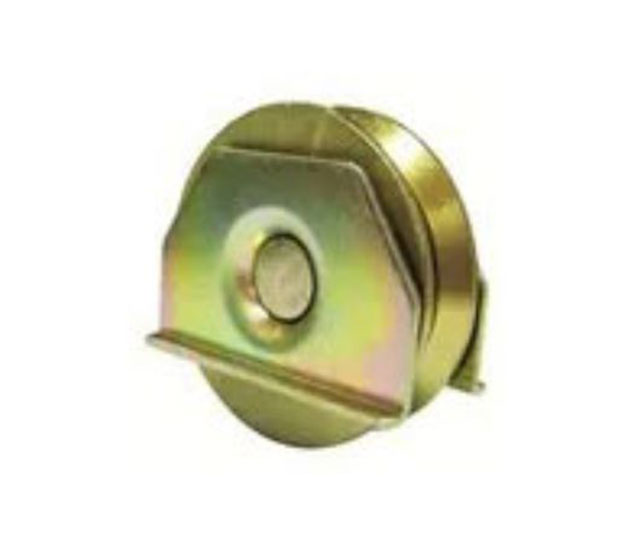

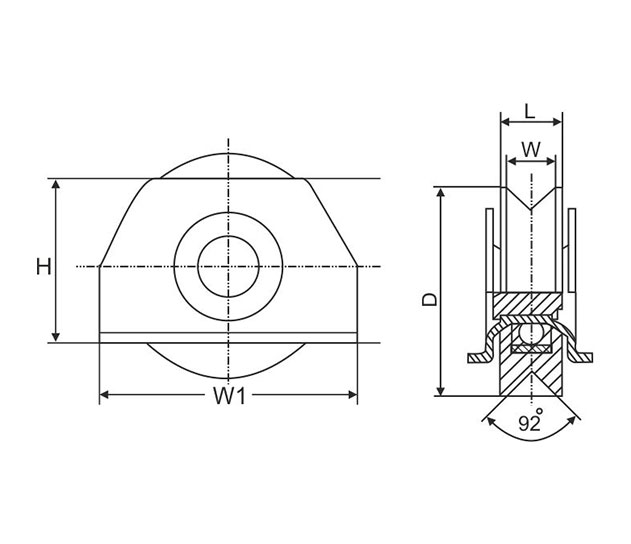

Type: FAS-A10 Series, Track Wheel with Bracket U,V & Y Type Groove
| Code |
D(mm) |
L(mm) |
W(mm) |
R(mm) |
W1(mm) |
H(mm) |
| FAS-A101 |
50 |
18 |
10 |
5 |
60 |
48 |
| FAS-A102 |
60 |
18 |
16 |
8 |
60 |
48 |
| FAS-A103 |
70 |
20 |
16 |
8 |
67 |
52 |
| FAS-A104 |
80 |
20 |
16 |
8 |
67 |
52 |
| FAS-A105 |
100 |
32 |
22 |
11 |
98 |
57 |
| FAS-A106 |
110 |
32 |
22 |
11 |
98 |
57 |

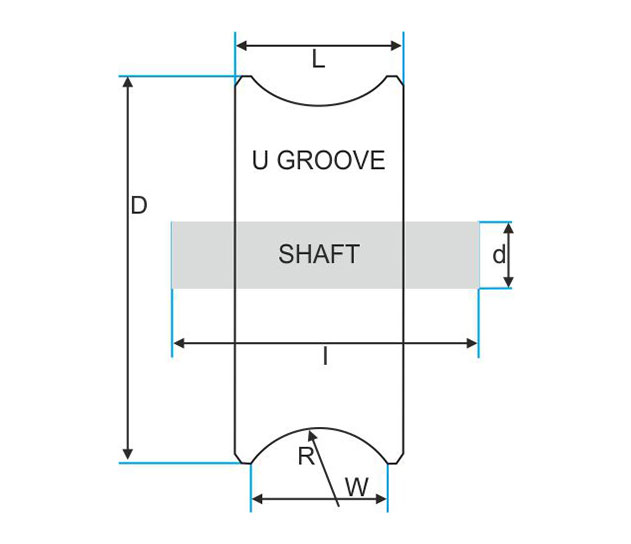

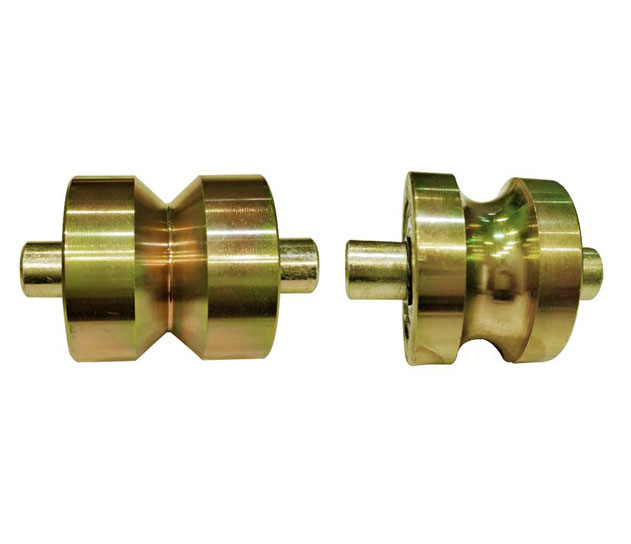

Type: FAS-A11 Series, Double Bearing Track Wheel, U & V Type Groove
| Code |
D(mm) |
L(mm) |
W(mm) |
R(mm) |
d x1(mm) |
| FAS-A111 |
48 |
48 |
16 |
8 |
15x65 |
| FAS-A112 |
48 |
38 |
16 |
8 |
15x70 |

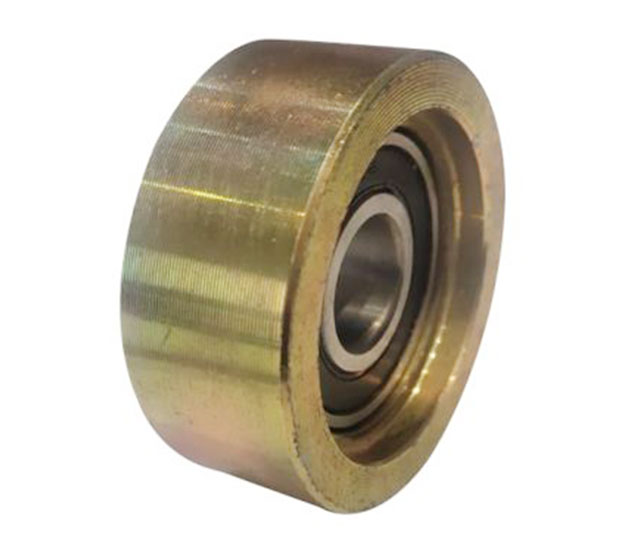

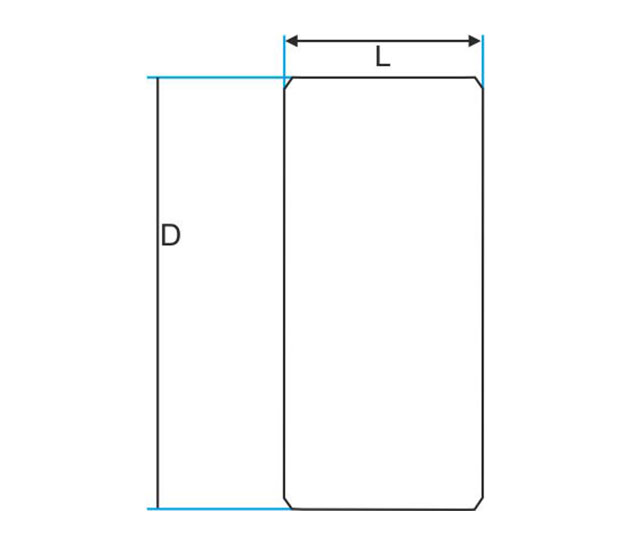

Type: FAS-A12 Series, Double Bearing Track Wheel (Plain)
| Code |
D(mm) |
L(mm) |
| FAS-A121 |
50 |
20 |
| FAS-A122 |
60 |
20 |
| FAS-A123 |
75 |
25 |
| FAS-A124 |
80 |
25 |
| FAS-A125 |
100 |
25 |
